Call for price

Excavator Size: 16 > 30 Ton

Width: 1600MM / 5.2ft

Teeth Thickness: 30mm

Teeth Seperation: 230mm

Teeth Depth: 810mm

Grapple Opening: 1390mm

Weight: 1487KG

Robust, Well Designed, and Easily Controlled

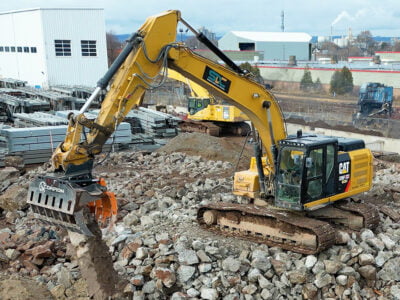

The Scorpion S1600 Excavator Grab was the first and largest in the Scorpion range. With a heavy duty hardox chassis and 30mm hardox teeth, the Scorpion S1600 is not short on build strength. Clamping force is not an issue with this Scorpion, as it features two massive hydraulic cylinders. With powerful cylinders and an impressive 1390mm jaw opening width, the Scorpion makes it easy to clamp onto boulders or stumps and take them away. This Scorpion is ideal for ripping through forestry roots, picking out boulders, and loading materials. The Scorpion S1600 model is no question the Scorpion King.

With a purposefully built heavy chassis, this model is one of the most heavy duty excavators grabs you’ll come across, weighing 1100kg. This heavy design ensures that it is stronger, more resilient and robust than anything else in its market category. The Scorpion is simple to use and setup, connect the grab to the excavators hammer lines and you will have full control of the Scorpions powerful hydraulic cylinders.

Like all MDE Scorpions, the Scorpion S1600 Excavator Grab comes with hardox chassis and teeth. Equipped with two powerful hydraulic cylinders. A key feature of the Scorpion design is the fixed position of one side of the grapple, as this allows the excavator operator to use it like a bucket, and clamp with the other grapple. Another important feature is the bolt on hitch allowing you to switch the Excavator Grab onto other Excavators.
