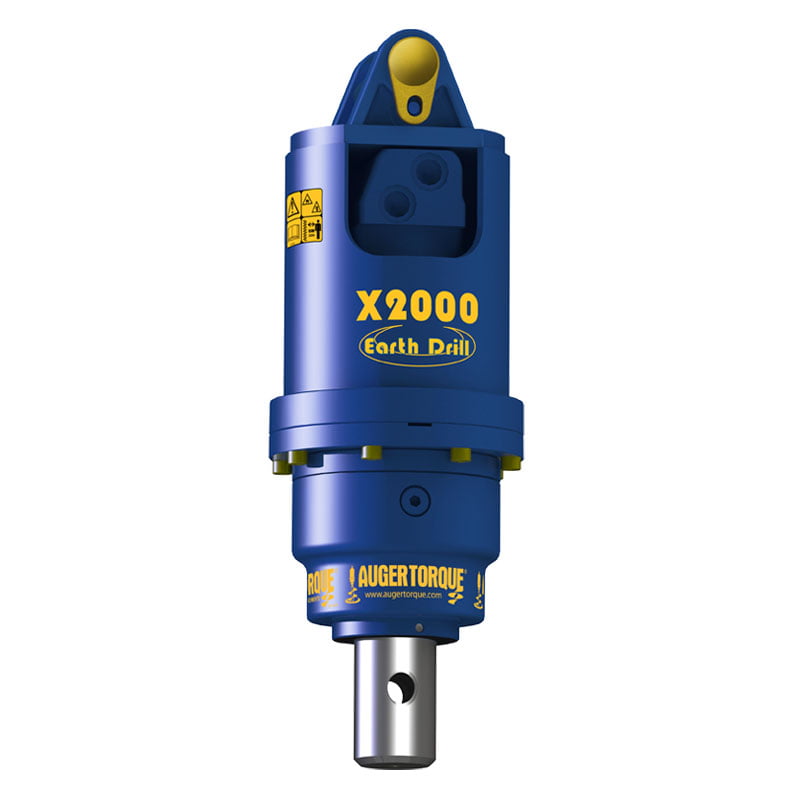

Auger Torque – X2000 Earth Drill

From £1,290.00 Ex. Vat

Mini excavators: 750kg to 3T.
Oil Pressure Range: 70 – 240 Bar
Torque Range: 639 – 2190 Nm
Oil Flow Range: 25 – 57 lpm
Speed Range: 43 – 99 rpm
Hub Options: 65mm Round (STD)/ 57mm Square/ 2″ Hex
Height: 585 mm
Width: 200 mm
Weight: 47 kg
Hitch Options: Single Pin Hitch/ Double Pin Hitch/ Cradle Hitch
Auger Range: S4
Drilling Diameter Range: 100 – 450 mm

High-quality hydraulic motors, output shaft bearings which are 50% larger than the nearest competitors’ comparable drive and the use of only high-grade materials mean that your Earth Drill will have a long, reliable service life.

The Non-Dislodgement Shaft is a single-piece drive shaft assembled top down and locked into the Earth Drill housing. This design guarantees that the shaft will never fall out, making for a safer work environment for the operator and any surrounding workers.

Torque is amplified by using the unique Auger Torque planetary gearbox. This system allows the motor’s output torque to be multiplied with extreme efficiency as well as ensuring the durability and reliability you need.
